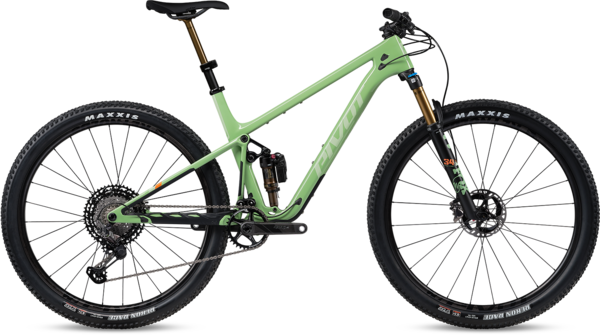

Pivot Cycles Mach 4 SL Team XTR Neo

Pivot Cycles Mach 4 SL Team XTR Neo
  • Color: Seafoam Green
  • Color: Midnight Sky
  • Color: Ice Blue
$11,899.00
Color:
Size: Select size
Wheel Size: 29-inch
Please select options Unavailable
This manufacturer currently prefers that we sell this item only in our real store. Visit us soon.

Details

The all-new Mach 4 SL; a podium seeking missile crafted from the ground up as a testament to speed without compromise. Designed to win gold and slaughter KOMs, all while delivering an otherworldly ride quality, telepathic handling, and a potent blend of acceleration and tractability. The new Mach 4 SL features Flight Attendant and World Cup builds, for the fastest laps, with no compromises.

- XC-Tuned DW-Link™ Suspension

- New XC Adapted Travel-Adjustable Flip-Chip

- XC builds featuring Fox Factory, Performance or RockShox Flight Attendant with 106mm or 115mm adjustable rear travel paired with a 120mm fork

- World Cup Builds feature the efficient Fox Factory Float SL Shock with 95mm or 103mm adjustable travel paired with the ultra-light 100mm Fox Step Cast 32 fork

- RockShox Flight Attendant builds feature the cutting edge wireless smart suspension and AXS components to adapt for the best performance for your riding

- Lighter, More Durable High-Load Enduro Max bearings

- Size-Specific Carbon Layup Across Size Range

- Low Standover Fits Riders 4'10" to 6' 7"

- Large Water Bottle Clearance on All Sizes

- Pivot’s full carbon frames feature size-specific ride tuning, leading edge carbon fiber materials, and Pivot's proprietary hollow core molding technology to ensure that every rider from 4'10" to 6'7" has a bike that feels perfect and performs at the optimum level for their size

- Injection Molded Rubberized Frame Protection

- Full Internal Routing with Pivot Cable Port System

- Pivot Dock Tool System Compatible Under Top Tube and BB

- Simplified Twistloc Suspension Lockout (available on select builds)

Geometry

120mm Travel ForkXSSMMDLGXL
ASet Tube Length (C-T) 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
BTop Tube Length 56.8 cm 58.4 cm 61.3 cm 64.2 cm 66.5 cm
CHed Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
DHed Tube Angle 66.7° 66.7° 66.7° 66.7° 66.7°
ESet Tube ngle (Eff.) 74.7° 74.7° 74.7° 74.7° 74.7°
FChainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
GBottom Bracket Height 33.6 cm 33.6 cm 33.6 cm 33.6 cm 33.6 cm
HBottom Bracket Drop 3.8 cm 3.6 cm 3.6 cm 3.6 cm 3.6 cm
IStndover 64.6 cm 65.6 cm 68.4 cm 67.9 cm 70.9 cm
JWheelbse 111.1 cm 112.8 cm 115.9 cm 118.9 cm 121.5 cm
Rech 39.7 cm 41.2 cm 43.7 cm 46.2 cm 48.2 cm
Stck 58.6 cm 58.9 cm 60.3 cm 61.7 cm 63.1 cm
Sizes:
100mm Travel ForkXSSMMDLGXL
A Seat Tube Length (C-T) 35.5 cm 39.4 cm 41.9 cm 46.0 cm 50.5 cm
B Top Tube Length 56.5 cm 58.0 cm 60.9 cm 63.8 cm 66.2 cm
C Head Tube Length 8.5 cm 9.0 cm 10.5 cm 12.0 cm 13.5 cm
D Head Tube Angle 68.0° 68.0° 68.0° 68.0° 68.0°
E Seat Tube Angle (Eff.) 76.0° 76.0° 76.0° 76.0° 76.0°
F Chainstay Length 43.2 cm 43.2 cm 43.2 cm 43.2 cm 43.2 cm
G Bottom Bracket Height 32.7 cm 32.9 cm 32.9 cm 32.9 cm 32.9 cm
H Bottom Bracket Drop 4.7 cm 4.5 cm 4.5 cm 4.5 cm 4.5 cm
I Standover 63.7 cm 64.4 cm 67.2 cm 66.8 cm 69.8 cm
J Wheelbase 110.1 cm 111.8 cm 114.9 cm 117.9 cm 120.5 cm
Reach 41.0 cm 42.5 cm 45.0 cm 47.5 cm 49.5 cm
Stack 57.7 cm 58.0 cm 59.4 cm 60.8 cm 62.2 cm
To ensure the best sizing, we recommend that you visit your local Pivot dealer to get a professional fit and refer to our geometry chart to check your measurements. However, we can provide a rough guideline:
Sizes:
Frame SizeRider Height (in)
X-Small 4'10" - 5'4"
Small 5'4" - 5'8"
Medium 5'8" - 5'11"
Large 5'11" - 6'2"
X-Large 6' - 6'7"
Be sure to also consult our dropper post fit guide when making your selection.

Specs

Frame Mach 4 SL
Fork Fox Factory Stepcast 34 29", 44mm offset, GRIP SL - 120mm
Rear Shock Fox Factory Float X Neo Live
Wheels Reynolds Blacklabel 309/289 XC w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x148 R
Tires MAXXIS REKON 29X2.4 3C TR EXO 120TPI/Maxxis Rekon Race 29" x 2.4" TR, EXO, 120 TPI
Crankset Race Face Next SL 34t
Shifters Shimano XTR M9100 ISPEC EV 12-Speed
Rear Derailleur Shimano XTR M9100 SGS 12-Speed
Cassette/Freewheel Shimano XTR M9100 10-51t
Chain Shimano CN-M9100 12-Speed
Brakes Shimano XTR M9100 2-piston
Rotors Shimano XTR CenterLock - 160mm
Handlebars Phoenix Team Flat Carbon - 760mm
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team XC/Trail - 60mm
Headset Pivot Precision Sealed Integrated Cartridge
Seatpost Fox Transfer Neo Factory Series 125mm (XS-SM), 150mm (MD-LG), 200mm (XL)
Saddle Phoenix WTB World Cup Volt Carbon Medium Width

* Subject to change without notice.

Part Numbers

Option UPC MPN
Seafoam Green / X-Small / 29-inch 196338106900 004SLV329CXRAL-GSFXSDRPON
Seafoam Green / Small / 29-inch 196338106863 004SLV329CXRAL-GSFSMDRPON
Seafoam Green / Medium / 29-inch 196338106849 004SLV329CXRAL-GSFMDDRPON
Seafoam Green / Large / 29-inch 196338106825 004SLV329CXRAL-GSFLGDRPON
Seafoam Green / X-Large / 29-inch 196338106887 004SLV329CXRAL-GSFXLDRPON
Midnight Sky / X-Small / 29-inch 196338172332 004SLV329CXRAL-BLKXSDRPON
Midnight Sky / Small / 29-inch 196338172295 004SLV329CXRAL-BLKSMDRPON
Midnight Sky / Medium / 29-inch 196338172271 004SLV329CXRAL-BLKMDDRPON
Midnight Sky / Large / 29-inch 196338172257 004SLV329CXRAL-BLKLGDRPON
Midnight Sky / X-Large / 29-inch 196338172318 004SLV329CXRAL-BLKXLDRPON
Ice Blue / X-Small / 29-inch 196338106801 004SLV329CXRAL-BICXSDRPON
Ice Blue / Small / 29-inch 196338106764 004SLV329CXRAL-BICSMDRPON
Ice Blue / Medium / 29-inch 196338106740 004SLV329CXRAL-BICMDDRPON
Ice Blue / Large / 29-inch 196338106726 004SLV329CXRAL-BICLGDRPON
Ice Blue / X-Large / 29-inch 196338106788 004SLV329CXRAL-BICXLDRPON
