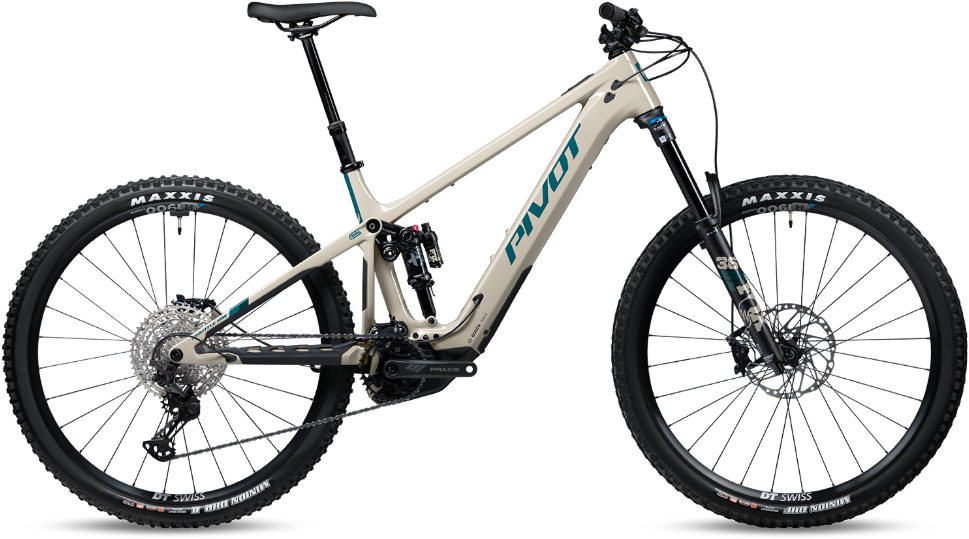

Pivot Cycles Shuttle AM Ride SLX/XT

Pivot Cycles Shuttle AM Ride SLX/XT
$5,999.99
$7,999.99
Color: Mojave
Size: Large
Please select options Unavailable
This manufacturer currently prefers that we sell this item only in our real store. Visit us soon.

Details

Product Details
Get everything you need to know about the Shuttle AM.
Ultralight Hollow Core Carbon Frame
Powerfully Smooth Bosch Performance Line CX Motor, CX Race Motor on Team Builds
Long-range 750Wh Battery on Team and Pro Builds, 625Wh battery on Ride Builds
Bosch 250wh PowerMore Range Extender Compatible
Integrated Power and Mode Display
Wheel Mounted Speed Sensor
Wireless Bosch Remote
160mm Fox Factory and Performance 36 Forks
Flip-Chip Upper Link Mount
Mixed Wheel Compatible
Pivot Dock Tool System Compatible
Water Bottle Clearance on All Sizes
Fox Factory Float X Shock with 148mm of Progressive Suspension Travel
Injection Molded Rubberized Frame Protection
Full Internal Routing with Pivot Cable Port System

Specs

Frame Shuttle AM Carbon
Fork Fox Performance 36 29", 44mm offset, GRIP - 160mm
Headset Pivot Precision Sealed Cartridge
Rear Shock Fox Performance Float X
Rims/Wheels Newmen Performance, 30mm - 29" 15x110 F/12x157 R
Hubs Newmen Performance, 30mm - 29" 15x110 F/12x157 R
Tires Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA, Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Crankset Praxis Alloy eCranks E-MTB 34t - 160mm
Chainwheel 34T
Chain Shimano CN-M6100 12 Speed
Rear Derailleur Shimano XT M8100 SGS 12-Speed
Rear Cogs Shimano Deore M6100 10-51t
Shifters Shimano SLX M7100 ISPEC EV 12-Speed
Handlebars Phoenix Race Low Rise Aluminum - 780mm (SM-MD), 800mm (LG-XL)
Tape/Grips Phoenix Factory Lock-On
Stem Phoenix Team Enduro/Trail - 45mm
Brake Levers Shimano SLX M7120 4-piston
Brakes Shimano SLX M7120 4-piston
Saddle Phoenix WTB Race High Tail Trail (SM), Phoenix WTB Race Volt Medium (MD), Pivot Pro E-Bike (LG-XL)
Seat Post SDG Tellis 130-150mm (SM), 150-170mm (MD), 180-200mm (LG-XL)
Accessories & Extras Bosch Performance CX / Powertube 625wh

* Subject to change without notice.

Videos

Pivot Shuttle AM - One Awesome E-Bike!

Meet The Shuttle AM!!!!

Part Numbers

Option MPN Store SKU
Mojave / Large 00SHTV629ASXA7-MWGLGDRPINSA1 SHU32620862G
