General Info
Model

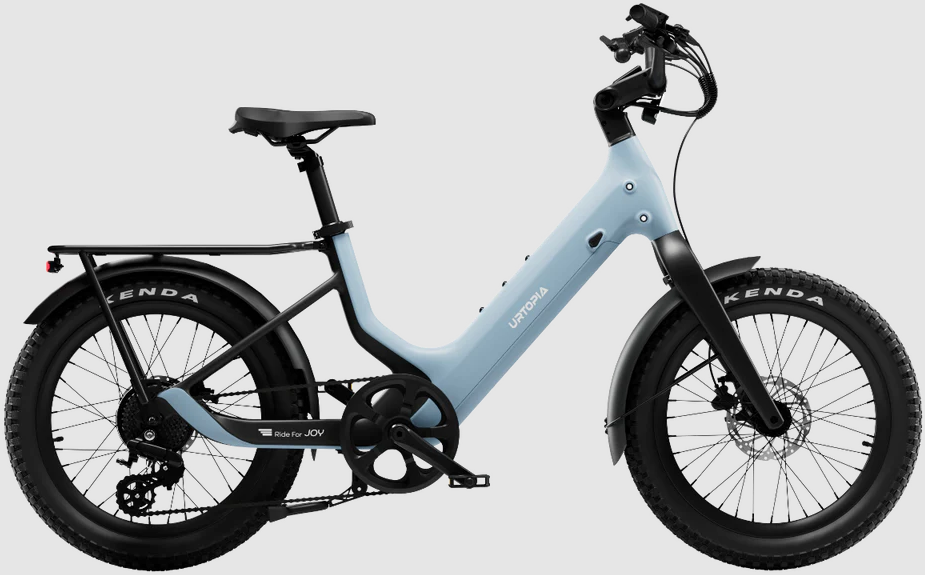

Carbon Joy Ultra E-bike
Net Weight
42 lbs w/o acc.
Material
Carbon fiber (frame, fork)
Range
Up to 70 miles
*The 70-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.
*The 70-mile range was tested with a 180 lb rider, riding in ECO mode on flat roads without throttle.
Top Speed
20mph by default, 25mph upon unlock
Total Weight Limit
330 lbs
Rider Height
4’11’’ - 6’3’’
Brakes
TEKTRO hydraulic disc brake with power cut-off sensor
Wheels
Kenda 20’’x3.0’’, Thru-Axle
Ebike System
Class
Class 2
Motor
750W (peak) rear hub, 60Nm
Throttle
Yes (up to 20mph)
Battery
529.2Wh, Samsung Li-ion, certified to UL-2271
Pedal Assist
4 levels (Eco, Tour, Boost, Turbo)
Charger
3.5hrs fast charger
Sensors
Torque sensor
Lights
Front: External light, 30 Lux
Rear: External tail light (Not ARES lights)
Rear: External tail light (Not ARES lights)
Water Resistance
IP65
Drivetrain
Chainrings
50T
Crankset
Aluminum alloy, 152mm
Cassette
12-32T, 8 Speed
Chain
Shimano 8 speed
Rear Derailleur
Shimano 8 speed
Shift Lever
8 Speed Trigger
Pedals
PP, 103 x 84 x 24mm
Cockpit
Handlebar
Aluminum, extender 0-60° adjustable
Grips
Durable ergonomic Grips, lockable
Comfort Saddle
273x160x75mm
Seat Post
Aluminum Alloy, f34.9mm, length 240mm, 2-stage adjustable
